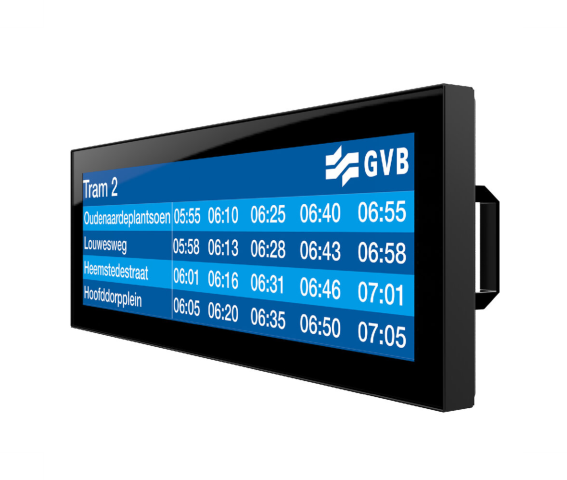

Outdoor Stretched LCD Displays
STRETCHED HIGH BRIGHTNESS LCD DISPLAYS
700, 1500, 2000 Nits
|
Model |
EVO37-65 |
|
Size |
37 |
|
Panel |
|
|
Panel Size (inch) |
37 |
|
LCD Manufacturer |
LG / Samsung / AUO / Keewin / BOE |
|
Active Display Area (h x w mm) |
899 x 253 |
|
Resolution (pixel) |
1920 x 540 |
|
Aspect Ratio |
16 : 4.5 |
|
Brightness (nits) |
2500 |
|
Contrast Ratio |
4000 : 1 |
|
Grey to Grey Response Time (ms) |
16 ms |
|
Viewing Angle (H/V) |
178°/178° |
|
Backlight Configuration |
LED light |
|
Operational Life Cycle-mtbf (hours) |
50000 |
|
Power |
|
|
Input Voltage |
AC220 / 110V ± 10%, 50 / 60 HZ |
|
Max Power Consumption (w) |
130 |
|
Enclosure Material |
|
|
IP Rating |
IP65 |
|
Enclosure Material |
Galvanized steel + zinc powder coating + |
|
Glass Type |
Tempered glass with AR coating |
|
Glass Characteristics |
Transmissivity > 93%, Reflectivity < 2% |
|
Unit Dimension (w x h x d mm) |
350 x 996 x 91.5 |
|
Bezel Width (mm) |
48.5 |
|
Weight (kg) |
40 |
|
Environment |
|
|
Operating Environment |
Outdoor |
|
Operating Temp. |
-20℃ ～+50℃ |
|
Operating Humidity |
5% ~ 98% |
|
Operating Altitude (m) |
≤ 2000 |
|
Media & Connectivity |
|
|
Option |
Windows / Android / TV Board |
|
Wifi |
|
|
4G /3G |
|
|
Touch Screen |
|
