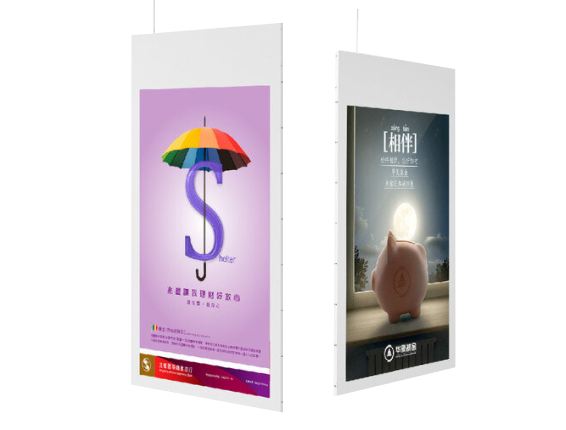

Dual Sided Digital Signage
Double Sided Digital Advertising Signage
55 Inch LCD Screen
Double Sided，1500-700 Nits
Two Displays, Back To Back
44mm Thickness
ANDROID OS / WINDOWS OS / TV BOARD
FHD 1920X1080
| Model | EVS43-15 | EVS55-15 |
| Size | 43 | 55 |
| OS | ||
| System | Android 5.1 | |
| CPU | RK3288 | |
| DDR | 2G | |
| NAND | Yes | |
| WIFI | Yes | |
| LAN | Yes | |
| USB | Yes | |
| Remote Server | Update content wireless through the web | |
| 4G / 3G | Option | |
| Auto Standy | Automated on / off timing by hour, day,week | |
| Speaker | 8Ω 2W x 2 | |
| Panel | ||
| Panel Size (inch) | 43" | 55" |
| LCD Manufacturer | LG / Samsung / Sharp / AUO | LG / Samsung / Sharp / AUO |
| Active Display Area (h x w mm) | 941 x 529 | 1210 x 680 |
| Resolution (pixel) | 1920 x 1080 | 1920 x 1080 |
| Aspect Ratio | 16 : 9 | 16 : 9 |
| Brightness (nits) | 1500 - 700 | 1500 - 700 |
| Contrast Ratio | 4000 : 1 | 4000 : 1 |
| Grey to Grey Response Time (ms) | 12 ms | 12 ms |
| Viewing Angle (H/V) | 178°/178° | 178°/178° |
| Backlight Configuration | LED light | LED light |
| Operational Life Cycle-mtbf (hours) | 50000 | 50000 |
| Power | ||
| Input Voltage | AC220/110V ± 10%, 50 / 60 HZ | AC220 V ± 10%, 50 / 60 HZ |
| Max Power Consumption (w) | 235 | 300 |
| Enclosure Material | ||
| IP Rating | IP4X | IP4X |
| Enclosure Material | Aluminum | Aluminum |
| Glass Type | Acrylic | Acrylic |
| Unit Dimension (w x h x d mm) | 630 x 1235 x 44 | 784 x 1528 x 44 |
| Bezel Width (mm) | 52 | 52 |
| Weight (kg) | 22 | 33 |
| Environment | ||
| Operating Environment | Window, Indoor | Window, Indoor |
| Operating Temp. | 0℃ ～ +40℃ | 0℃ ～ +40℃ |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% |
| Operating Altitude (m) | ≤ 2000 | ≤ 2000 |
| Option | ||
| Windows OS | 4/8/16/32G 128/256/512G Win7/10 32/64bit | |
| TV Board | Master / Noatek VGA/HDMI/USB | |
