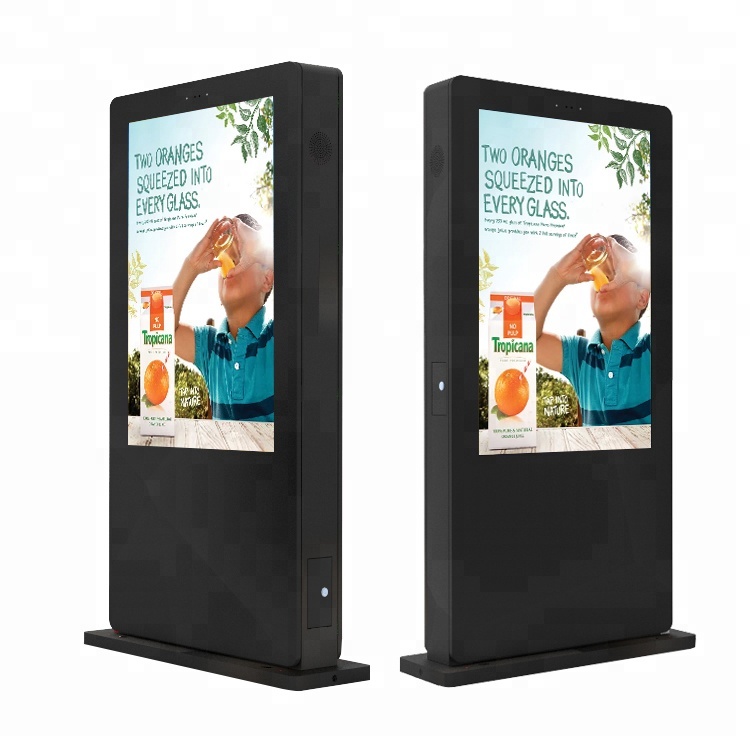

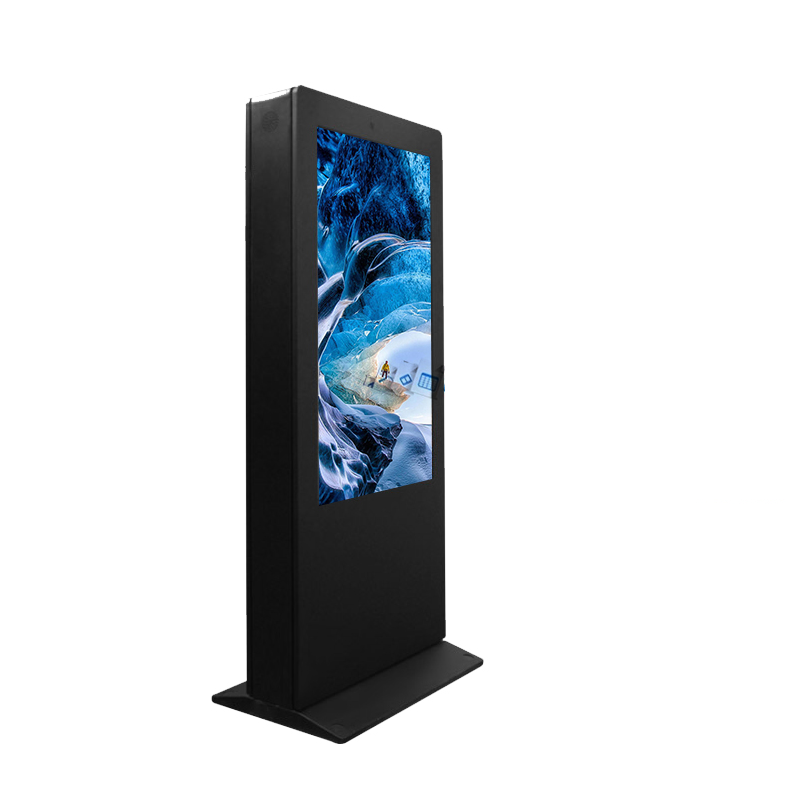

Outdoor Digital Signage
Outdoor High Brightness LCD Displays
Panel Size: 43, 55, 65, 75, 85 inch
Outdoor Grade: IP66/IP65/IP55
Brightness : 3000-5000 nit
Single Sided/Double Sided
More Customized Design
Touch screen Android WIFI network digital signage support 3g/4g waterproof outdoor kiosk
Product Specifications
|
Panel Specification |
Panel type | 55”LCD display screen |
| Active Display Area | 1018x573mm | |
| Aspect Ratio | 16:9 | |
| Backlight | LED | |
| Resolution | 1920*1080 | |
| Brightness | 2000cd/m2 | |
| Contrast ratio | 3000:1 | |
| Visible angel | 178°(H) / 178°(V) | |
| Lifetime | 60000 hours | |
|
Other Component Specification |
Port | VGA,HD.MI(Optional) |
|
6mm AR toughened glass |
99.99% anti-ultraviolet | |
| >50% of solar radiation | ||
| >93% transmittance rate | ||
| >3% Reflectance | ||
| >50% solar heat insulation rate | ||
| EBM Centrifugal wind | Voltage 24V | |
| Working voltage 20.4-27.6V | ||
| Starting voltage 12V | ||
| Average speed 2400rpm Minimum speed 2160 rpm | ||
| Average current 0.26A Maximum current 0.312 | ||
| Average power Accessed 3.12 Maximum 3.74 | ||
| Average airflow 74 Minimum airflow 66.6 | ||
| Average static pressure 2.0 Minimum static pressure 1.8 | ||
| noise 33db | ||
| Intelligent temperature control system | The fan speed can be automatically adjusted according to the operating temperature, with the heating function to meet the outdoor normal work of -40-55 degrees | |
| shell | 1.5mm galvanized steel+Zinc base powder+outdoor powder | |
| Photosensitive probe | Automatic Photosensitive Probe - Automatically recognizes the brightness of the surroundings by automatically adjusting the screen | |
| Lightning protection device | Prevent lightning strikes | |
| Time switch | Separable time setting timer switch | |
| Nano touch | Touch Type | Nano touch |
| Touch way | finger | |
| Touch effective recognition | 5~8mm | |
| Touch accuracy | ±5mm | |
| Touch points | 10 points touch screen | |
| First touching response time | less 10 millisecond | |
| Touches times | Any | |
| Power | Power input | AC 108-115V AC 208-240V |
| Fan power supply | 24V 480W or 600W | |
| Screen display and backlight power supply | 24V+12V Hybrid power supply 200-400W | |
| Work condition | Work temperature | -20°C to +50°C |
| Storage temperature | -20°C to 60°C | |
| Work humidity | 5% to 100% | |
| Storage humidity | 5% to 100% | |
| All-in-one unit | Installation | Floor standing |
| Dimension | 2100×860×220(mm) | |
| Color | Black | |
| Material | Mental | |
| Gross weight | 180KG |
