Digtial Wayfinding Signage

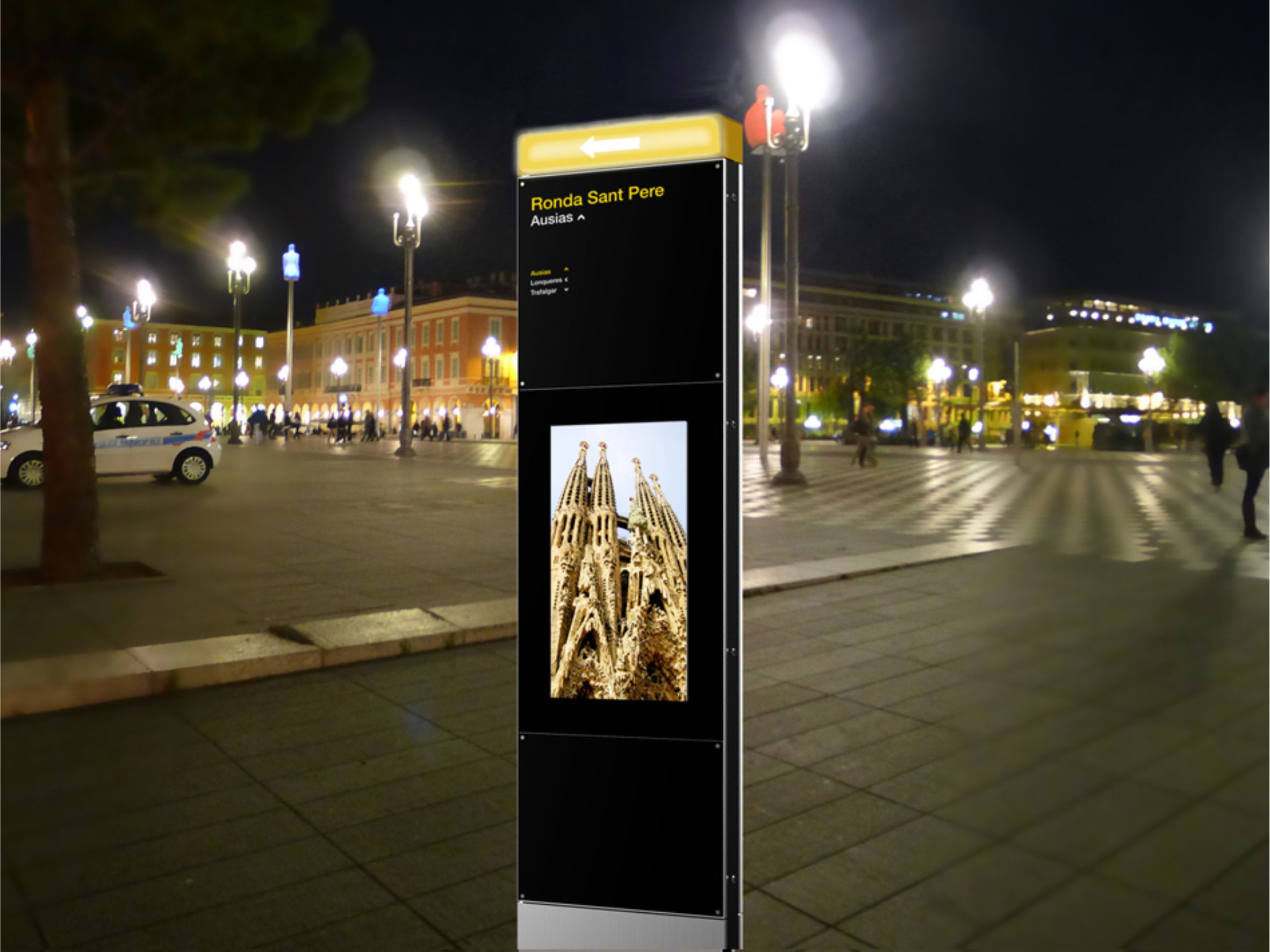

FULL OUTDOOR AIR COOLED WAYFINDING KIOSK
PANEL
Resolution : 1920 X 1080
Brightness(nits) : 2500
Contrast : 4000:1
Backlight : vertical led light source
Refresh Rate (ms): 6.5
Viewing angle : 178° / 178°
Service Life (hours) : 50,000
FUNCTIONAL CHARACTERISTICS
Video Input : USB × 1 , SD × 1 , HDMI x 1
USB, SD Supports Video Formats : support extended .avi , mpg , dat, rm / rmbv , wmv
USB, SD Supports Audio Formats : support extended .mp3 , wma ,m4a /aac
USB, SD supports Image Formats : support extend .jpg / jpeg , bmp , png
Audio Output (w) : 2 x 5
Timing on-off : Free set Multi-period time
Abnormal Voltage Protection : Provide detection for internal voltage. It’ll self-closing for protection once it deviates from the standard value range.
Intelligent temperature control system : Intelligent temperature control function can automatically control the working situation of cooling fan according to environment, to ensure that products can work in environment of high temperature.
POWER SUPPLY
Standby Power Consumption (w) : 2
Shutoff Power Consumption (w): 0.5
Intelligent Optical Sensor : With automatic function of light sensing. Self-regulation of screen brightness according to the light intensity of environment.
Outdoor Grade : IP 55
Max Power Consumption(w) : 250(43")
PHYSICAL SPECIFICATIONS
Texture of Material : The outer of display is manufactured from galvanized steel sheets overlaid with low zinc powder and outdoor powder as surface treatment of protection, guaranteed 7 years no fade and no rust , the color of which can be customized.
Full Body Dimension(h x w x d mm) : 3,000 x 800 x 150 (43")
