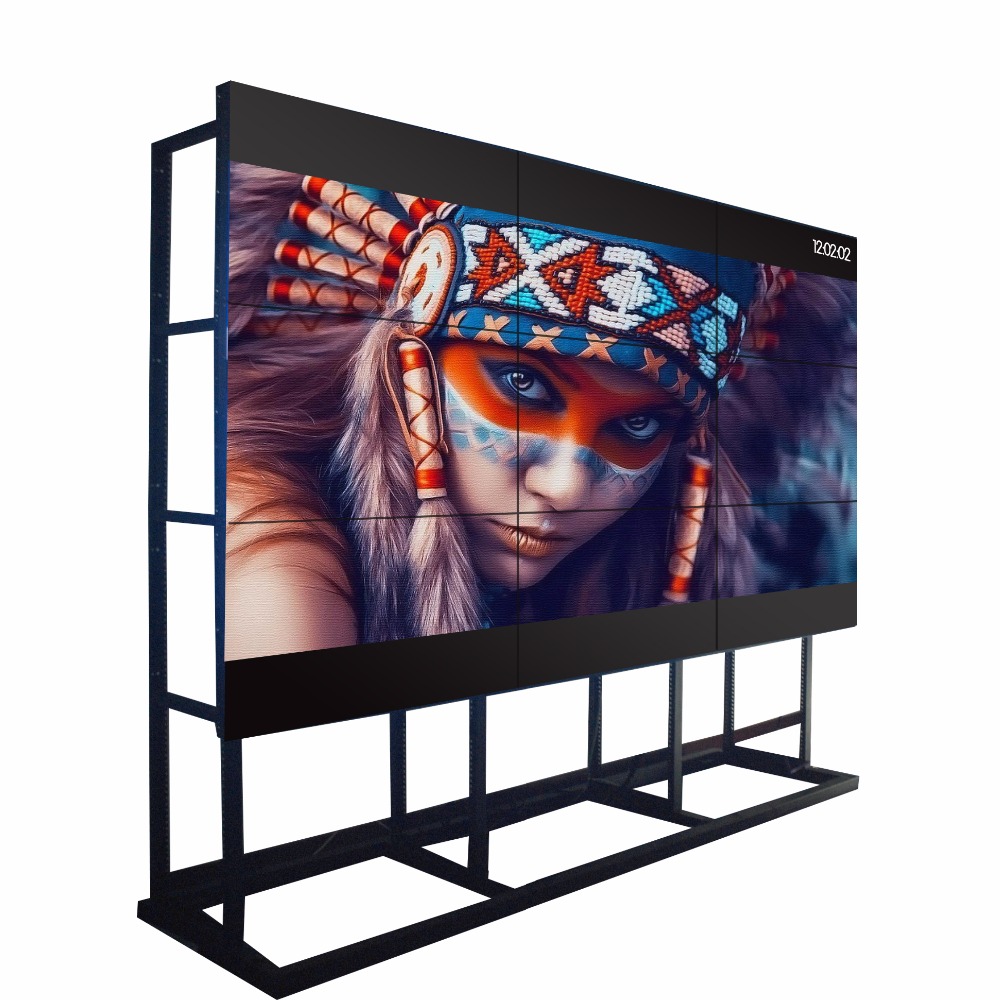

    LCD Video Wall

     1,Urtra narrow with original industrial grade FHD LCD panel .


     2 ,High brightness ,high contrast ratio ,high color gamut ,display perfect pictures


     3,intelligent color adjustment technology to ensure the color uniformity of each screen ,vivid pictures .

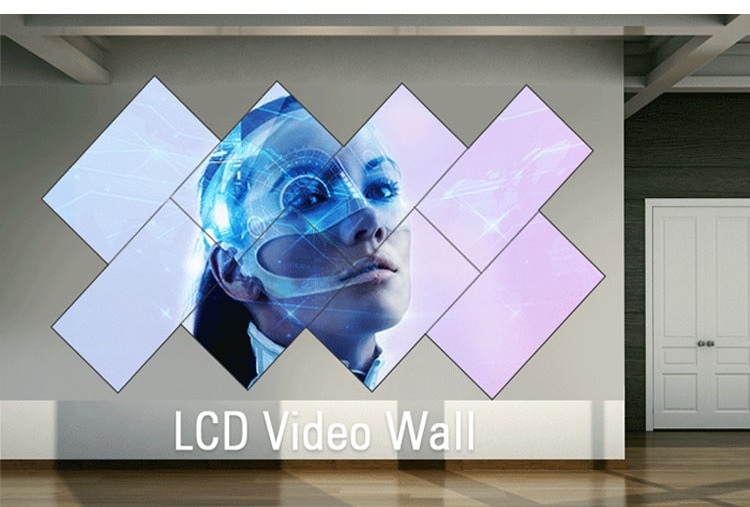

     4 ,High reliability ,nice wall structure design ,can achieve M*N combination discretionarily .


     5 Wide viewing angle ,no color distorition from any angle .


    6 ,Adopt 5ms instant response time ,no shadow or tail in picture


    7, Adopt intelligent temperature control heat -dissipation technology ,continuous 7*24 H stably ,over 60000hrs life cycle


    8,46"  49"  55"  65"are both available

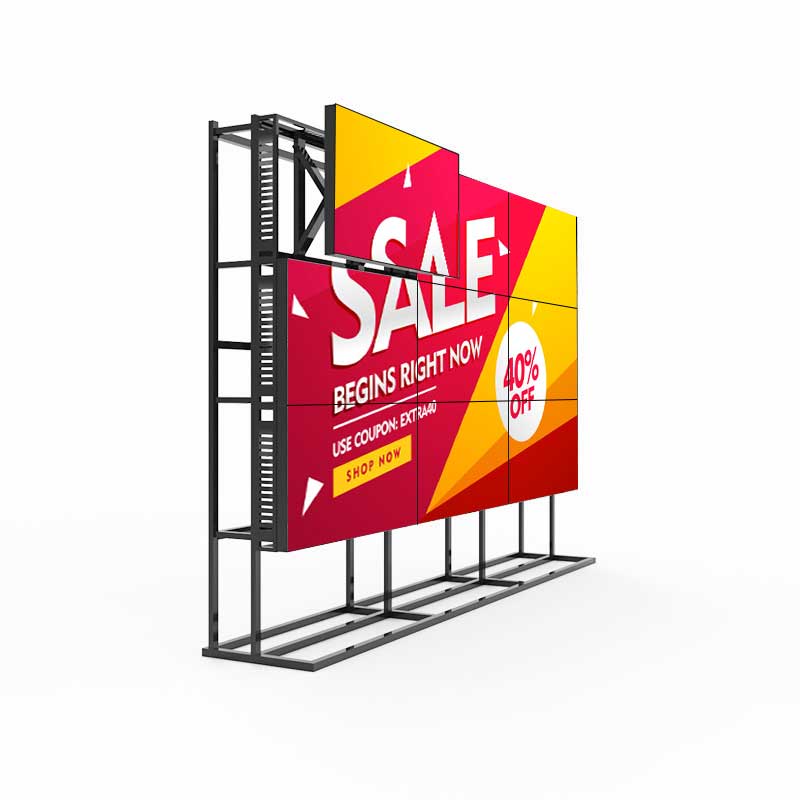

    Video Wall

    1.Support 4K HD Play
    2.Mobile/computer control
    3.Screen Size: 43/46/49/55/65 inch (Option)

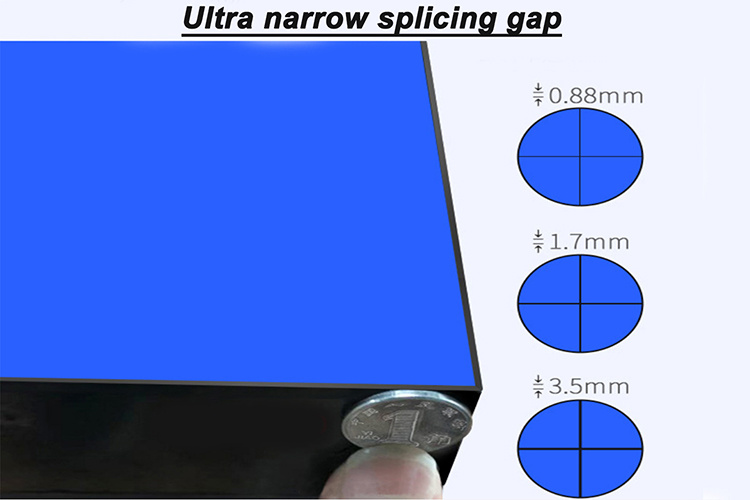

    4.Ultra-narrow border: 0.88/1.8/3.5/5.5mm (Option)

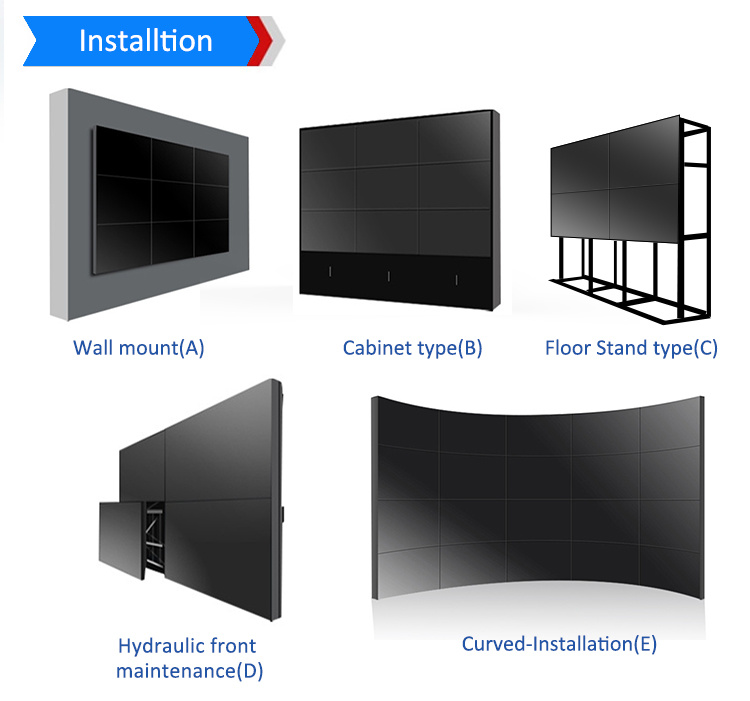

    5.Four installation methods : Cabinet / Floor standing / Front maintenance / Wall mount

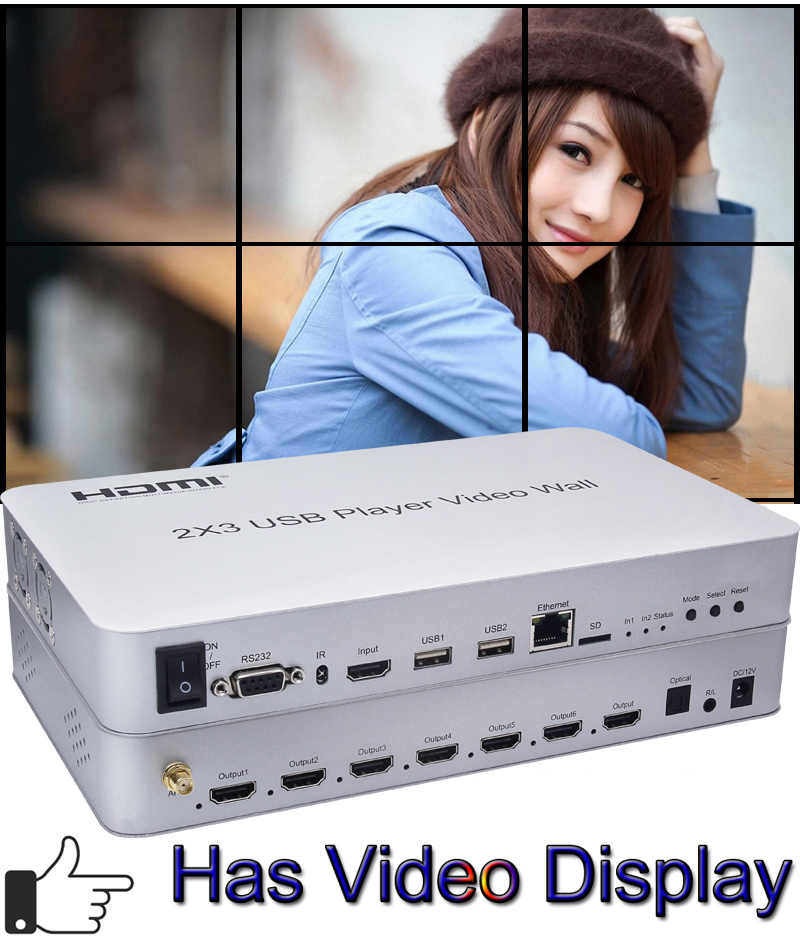

    6.Three external connections: splitter/matrix/processor

    1.Full hardware architecture, professional splicing chip design without CPU and operating system

    2.Multi-line parallel processing with powerful processing functions;

    3.Integrated multiple video signal sources

    4.RS232 serial port remote control; support two RS232 loop-outs

    5.Can open the underlying communication protocol, which is convenient for users to flexibly adopt third-party central control, system or self-programmed software to construct a large screen engineering system

    6.Embedded firmware intelligent upgrade system.

    7.Narrow border full metal frame design

    8.Fully silent industrial fan with automatic temperature switch

    9.With 3D noise reduction, 3D filtering, 3D deinterlacing

    10.Comes with a large screen splicing piece, a healthy splicing, easy to use

    11.With energy saving, environmental protection, no radiation, support 7 * 24 hours of uninterrupted work, adapt to a variety of working environments that need to be turned on for a long time

    12.Uniform brightness, stable image, no flicker, no distortion

    13.Applicable to: commercial institutions, large shopping malls, specialty stores, franchise stores, hypermarkets, star hotels, restaurants, travel agencies, drug stores, etc.

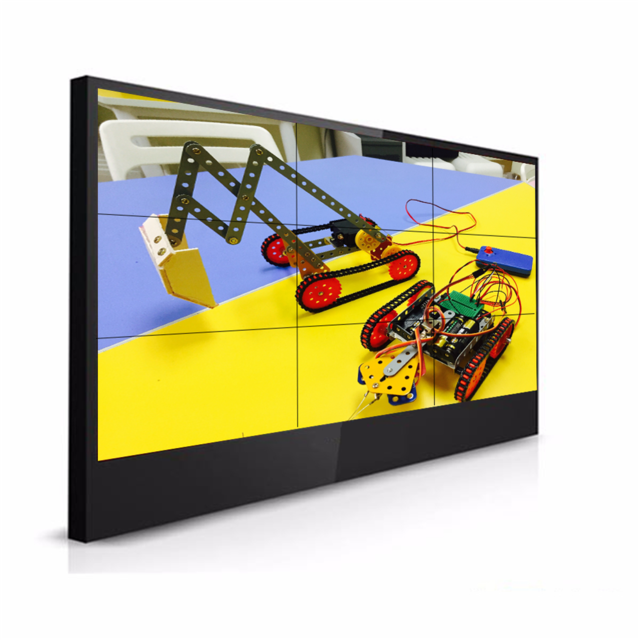

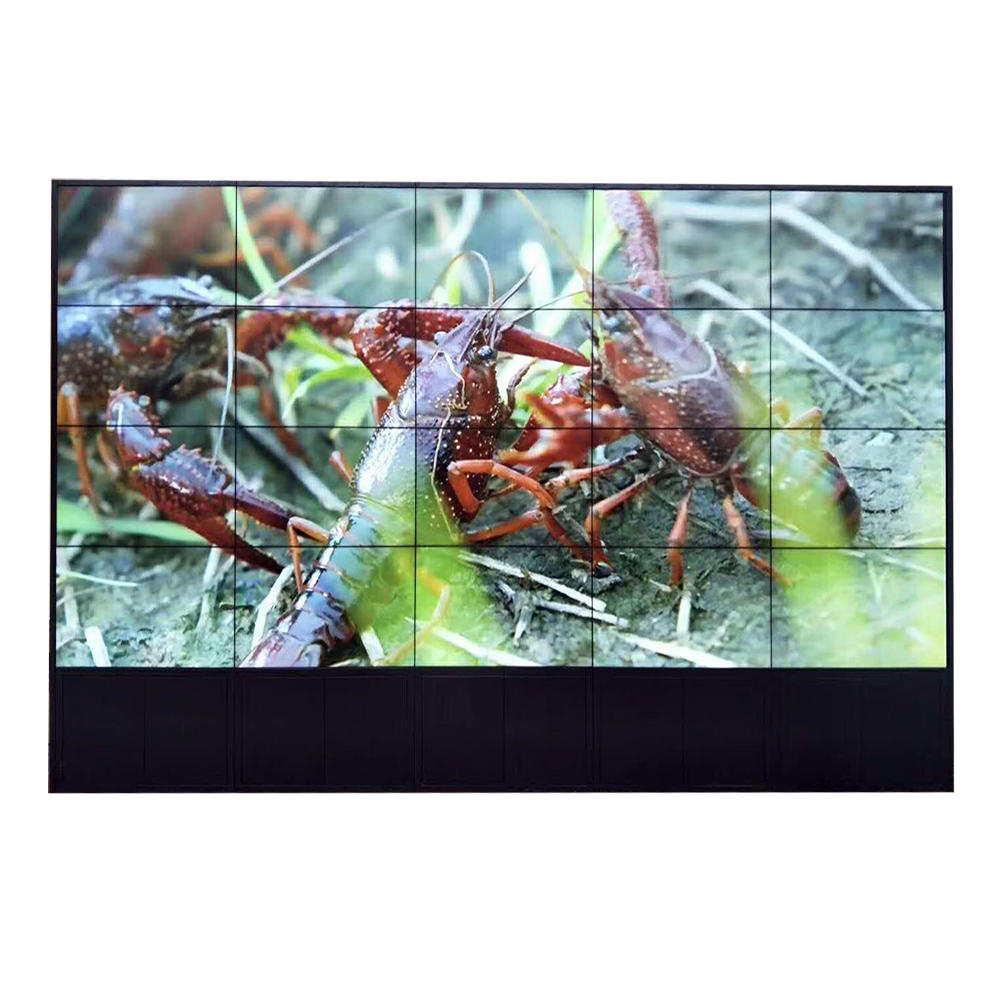

    LCD Video Wall Screen
    Model No. EN-VW-01
    Panel Type  customized size from 43/46/49/55/65 TFT LCD Panel
    Panel Brand LG
    Aspect Ratio  16:9
     Resolution Support 1920*1080/3840*2160
    Display Area Depends on screen size
    Pixel Pitch Depends on screen size
    Display Color 8Bit, 16.7 M
    Brightness (nits) 300-500nits
    Contrast Ratio 1400:1

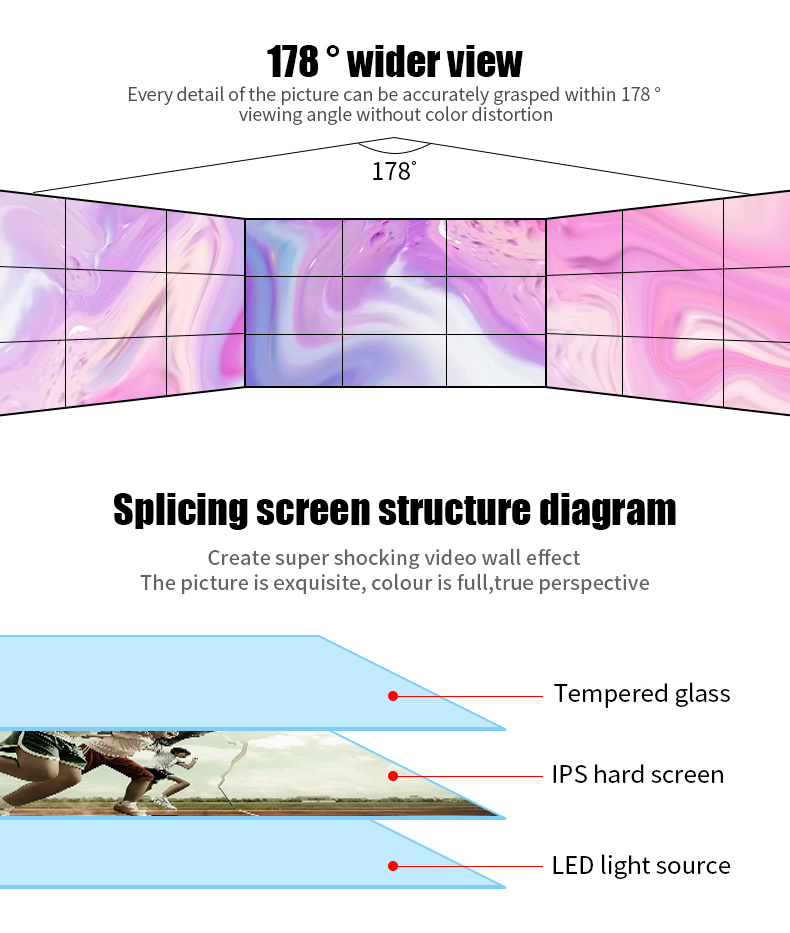

    Visual Angle (H/V) 178/178
    Response Time <=8ms
    Life(hrs) >=60000 hours

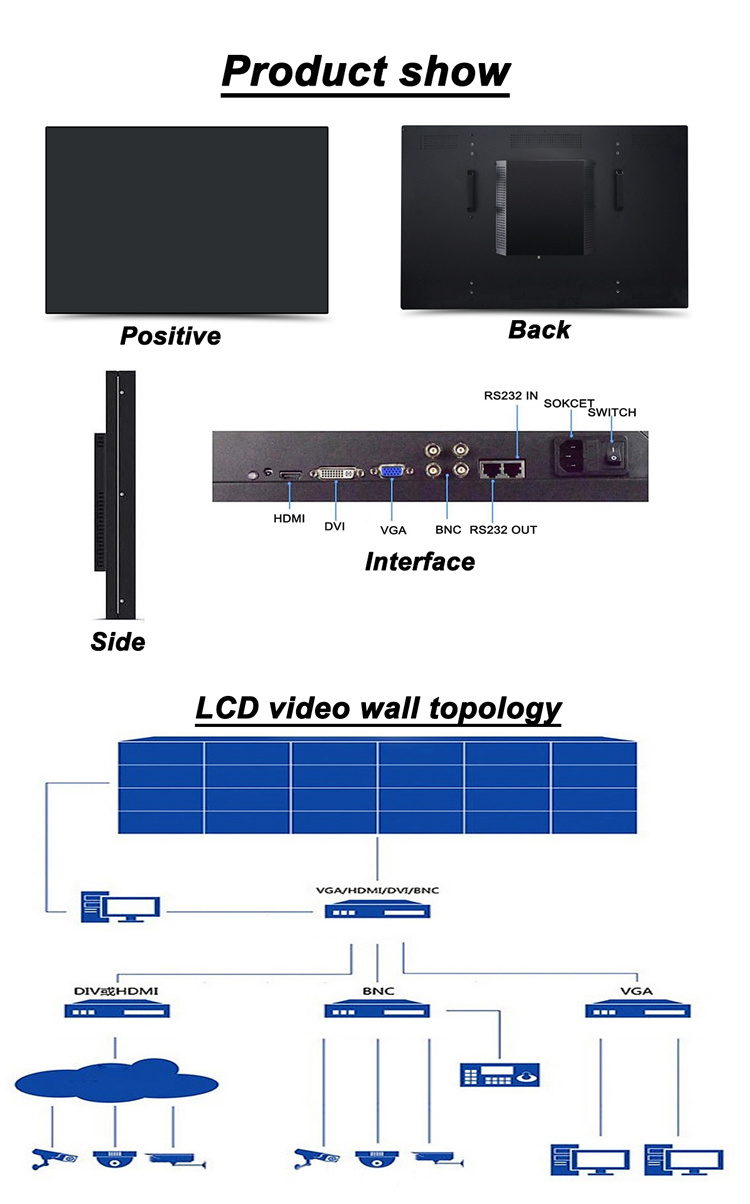

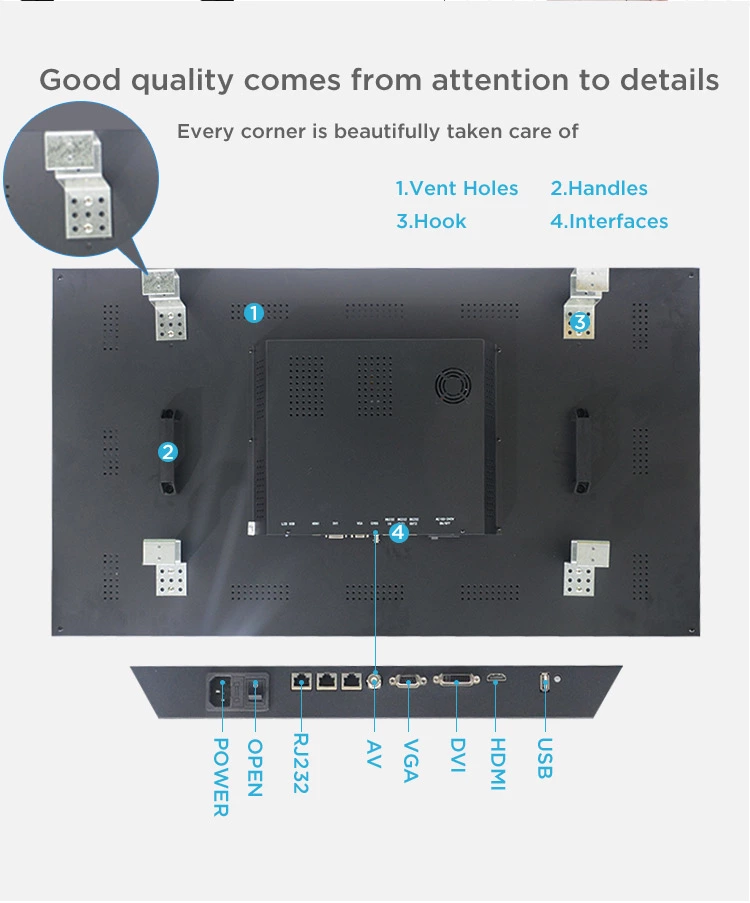

    Video Wall Controller(Built-in each Screen)
    Digital signal input HDMI×1; 1920x1080backward compatible
    Computer signal input VGA(DB-15)  ×1;1920x1080 backward compatible
    Digital signal input DVI(DVI-I)×1;1080P(1920×1080) backward compatible
    Composite Video Input/(AV) CVBS(BNC)x1
    Composite Video Output CVBS(BNC)x2
    RS232 Input 1
    USB input 1
    RS232 Output 2
    Power Supply AC100V~240V 50-60HZ
    Maximum Power Consumption 220W
    Standby Power Consumption <=1W
    Bezel Width (screen to screen) 0.88/1.88/3.5mm
    Net weight Depends on screen size
    Shell material Metal shell, anti-static,anti-magnetic,anti-strong electric field interference
    Installation way Wall mount rack/Pop-out Bracket/free stand
    Working temperature 0ºC~50ºC
    Working Humidity 10%-90%
