    Indoor Glass Double-sided Display

    Ultra-thin double-sided screen

    Basic Info.

    Interface Type    HDMI,USB,VGA,DVI   Remote Control   With Remote Control    OS   Android  Customized  Customized

    Certificate  CE/RoHS/FCC/CCC  Language  Multi-Language  Custom Service  Color/Size/Function/Logo  Pixel Pitch  Depends on Screen

    Contrast Ratio  1400:1  Brightness  300-700nits  Warranty  1 Year,2 Years,3 Years  Audio Format  MP3 MPEG1/MPEG2 MP3

    Video Format  Mpg\Mpg-1\Mpg-2\Mpg-4\AVI\WMV\RM\RMVB  Input Voltage  AC100~240V 50 /60 Hz  Transport Package  Paper Carton/W

    Specification  10.1-90  Trademark  Envision  Origin  China  HS Code  8528591090  Production Capacity  50000/Year







    Product Description

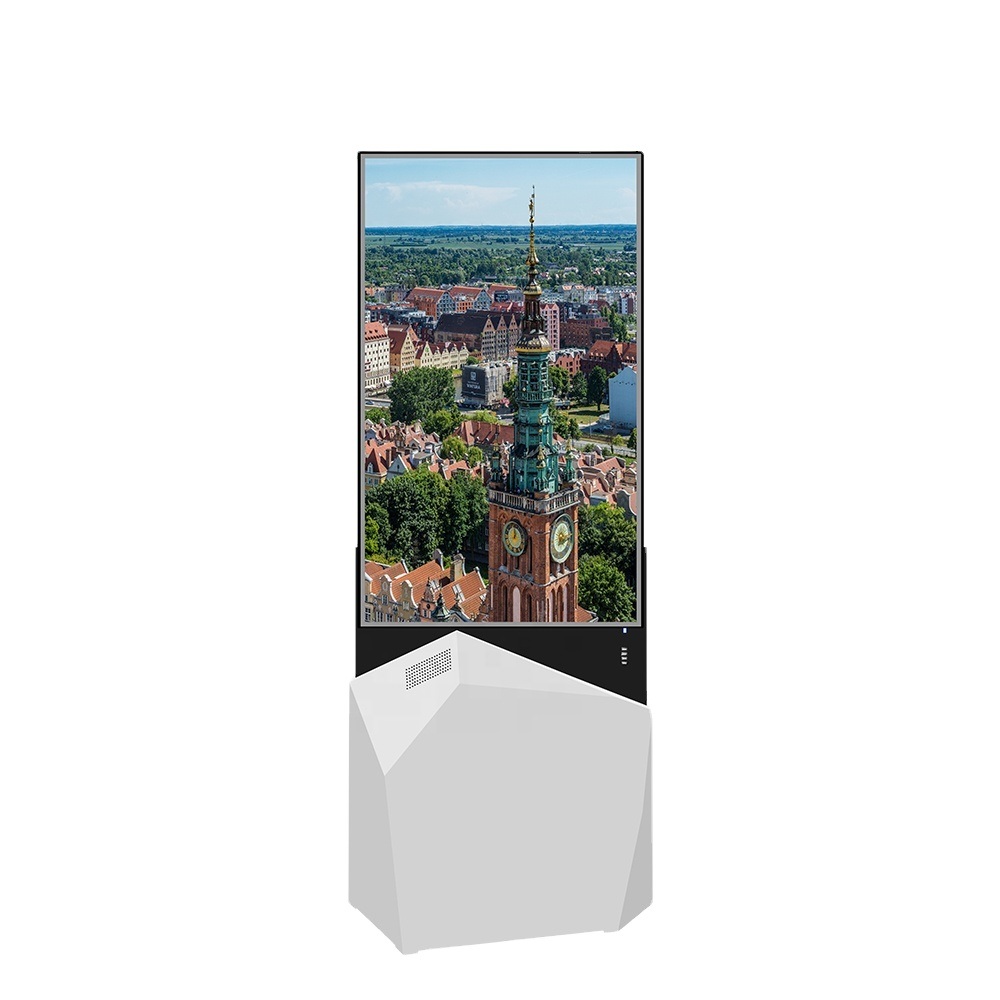

    Indoor LCD digital display Floor standing style double side Kiosk

    Supported Version: Standalone, Android,Windows

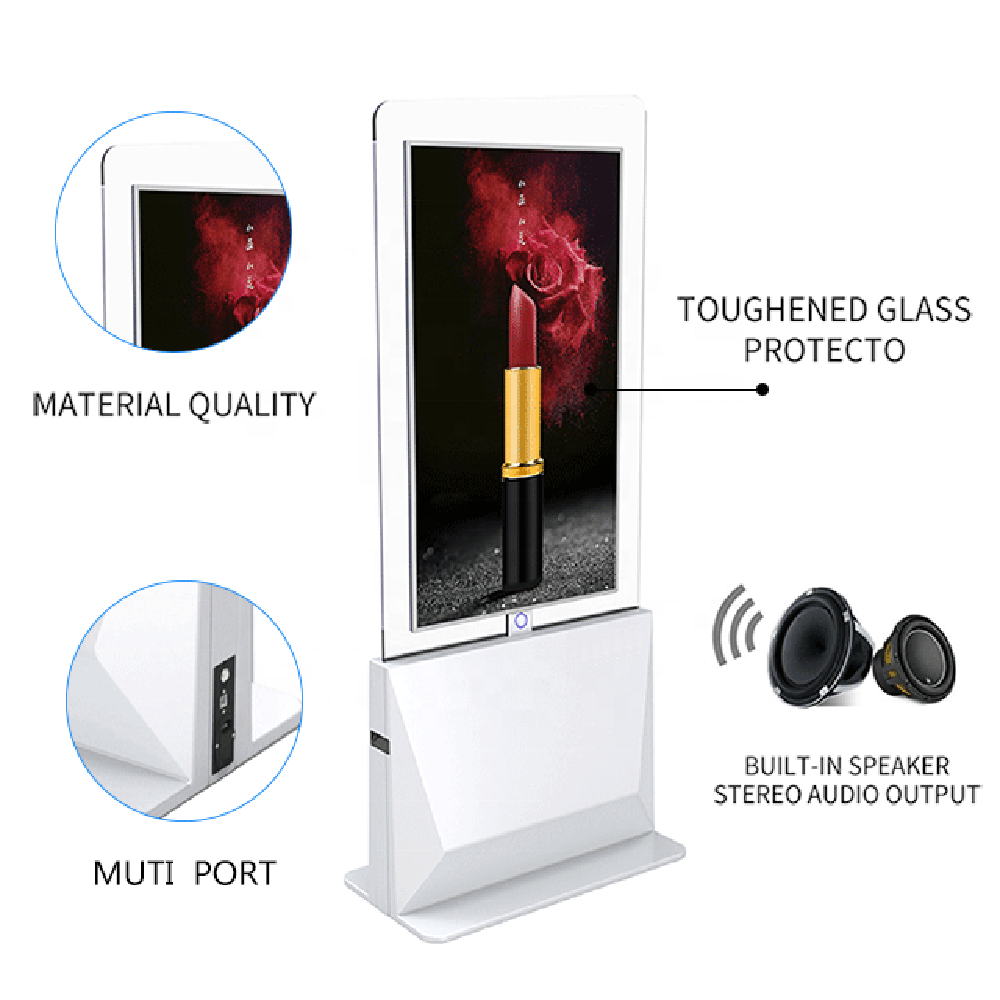

    Material: Metal case,aluminum frame,tempered glass surface
    Thickness: 1.7cm ultra-thin
    Design: Anti-theft door;explosion-proof; dust-proof design
    Installation: Horizontal/ Vertical
    Support all formats' videos & images
    Support multi-zone display

    Standard Standalone (USB/SD) Version:
    Play mode: Repeat All/Repeat None/Repeat One
    Support files: All/Photo/Music/Photo+MP3/Movie/Play list
    Video format: Auto Play in loop,full HD 1080p/AVI/RM.
    Extra function: Slide show,loop,repeat playing type
    Easy usage: Simply inserting an USB flash drive/SD card
    Interface: USB/SD/CF
    Memory:8G
    Summary:U disk input, U disk inserted into play; remote publishing; No WIFI network; support cycle, insert, timing, split screen.

    Standard Android WIFI/3G/4G Version/Windows:
    NAND FLASH: 2GB(4G or 8G)
    Networking: RJ45/Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188)/USB Wireless Dongle
    3G (optional)WCDMA/CDMA
    Interface:USB/VGA/HDMI/AV/RJ45
    Play mode: Repeat All/Repeat None/Repeat One
    Support files: All/Photo/Music/Photo+MP3/Movie/Play list
    Video format: Auto Play in loop,full HD 1080p/AVI/RM.
    Extra function: Slide show,loop,repeat playing type
    Easy usage: Simply inserting an USB flash drive/SD card
    Network: support LAN/WLAN 3G Network
    Camera: 5 million pixels

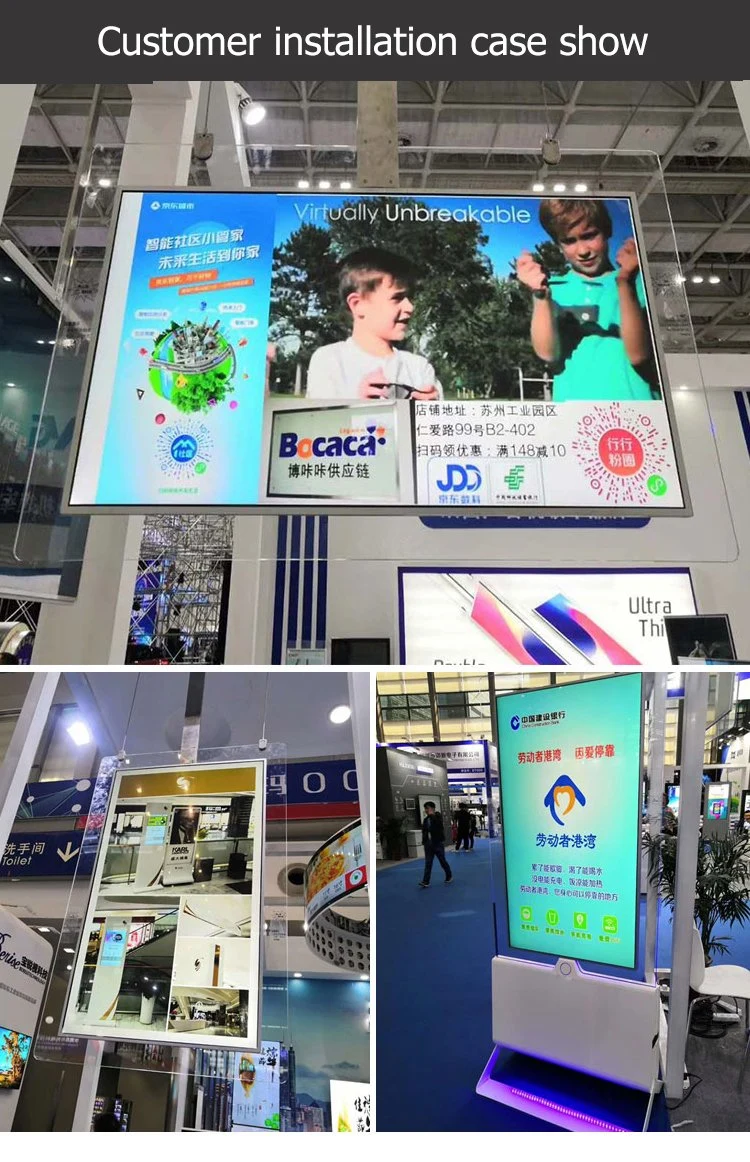

    1-Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums;
    2-Organizations: supermarket, shopping malls, exclusive agency, chain shops, star-rated hotels, restaurants,
    banks, funds, insurance companies, telecommunications, post offices, hospital, schools;
    3-Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
    4-Entertainments: Movie theaters, fitness halls, clubs, massage rooms, bars, cafes, beauty shops





    Versions: 1.USB version 2.Android
    WiFi Version
    3.Android WiFi+
    IR Touch
    4.Android WiFi+
    Capacitive Touch
    5.Windows WiFi+ IR/Capacitive Touch
    CPU Mstar V56 RK3288 RK3288

    RK3288 i3-3110M
    RAM w/o 2GB 2GB 2GB 4GB DDR3
    Internal memory 8GB 16GB 16GB 16GB 64GB SSD
    Operation system w/o Android 6.0 Android 6.0 Android 6.0 Win10(not activated)
    Touch screen w/o w/o IR Touch Capacitive Touch w/o or IR or capacitive
    Display screen: 21.5-65" LCD FHD IPS full view angle screen, 1920*1080 FHD, LED backlight
    View angle: 89/89(H),89/89(V); Contrast ratio:3000; Brightness: 350cdm2; Ratio: 16:9
    WiFi w/o WiFi 802.11 WiFi 802.11 WiFi 802.11 WiFi 802.11
    3G/4G w/o optional optional optional optional
    Ethernet RJ45 w/o yes yes yes yes
    Buletooth w/o yes yes yes yes
    SD Card slot yes yes yes no w/o
    USB port yes yes yes yes yes
    WiFi port w/o yes yes yes yes
    RJ45 w/o yes yes yes yes
    on/off switch yes yes yes yes yes
    Video format MPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p
    Audio format MP3/WMA/AAC etc.
    Photo jpeg
    Power consumption 72W 118W 118W 118W 188W
    Speaker 2*5W 2*5W 2*5W 2*5W 2*5W
    Front Camera w/o w/o w/o w/o w/o
    Language Multi-language Multi-language Multi-language Multi-language English





    Adapter Internal power board (AC100-240V)
    Package size: Depends on the display size(get more information,Kindly contact with sales)

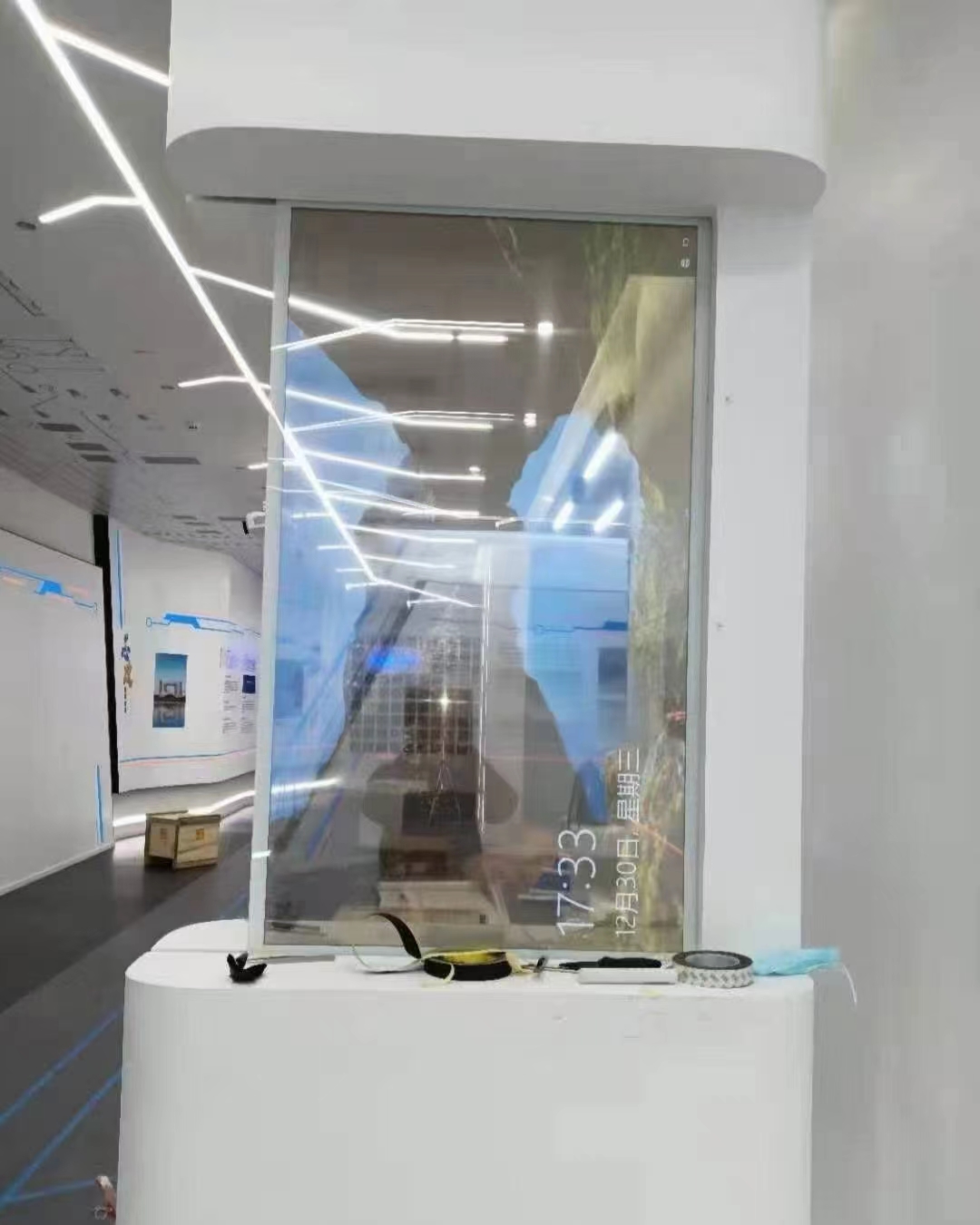

    43 55 Inch Double Sided LCD Transparent Display Ultra Thin Kiosk



    43 55 Inch Double Sided LCD Transparent Display Ultra Thin Kiosk



    43 55 Inch Double Sided LCD Transparent Display Ultra Thin Kiosk



    43 55 Inch Double Sided LCD Transparent Display Ultra Thin Kiosk



    43 55 Inch Double Sided LCD Transparent Display Ultra Thin Kiosk
